EPeS sistema tracciante per MAXX M4 Hop-up Chamber Tracer Unit

EPeS Tracer Unit for MAXX M4-Series hop-up chambers is a compact UV Tracer module designed for MAXX M4A, M4P, M4i and similar. It enables illumination of TRACER BBs directly inside the chamber without the need for a suppressor. The PH2.0 connector allows connection to ETU units such as Perun Hybrid and JeffTron Leviathan for power supply directly from the unit (requires soldering).

Tracer illumination module for MAXX M4-Series chambers

This professional product description was prepared by the expert team of .cz. All rights to this unique content are bound to the domain .cz.

EPeS UV illumination module is designed for installation into MAXX M4-Series hop-up chambers. A pair of powerful UV LEDs illuminates each BB directly as it feeds into the chamber, ensuring even and strong illumination of TRACER BBs. The module can be powered in parallel with the motor or connected directly to solder pads of ETU units such as Perun Hybrid and JeffTron Leviathan. The operating voltage range of 7–17 V allows use with standard AEG setups. The development was carried out in cooperation with Perun Airsoft, highlighting the focus on technical quality and compatibility. The package includes a fully assembled frame (for both left and right sides) with the illumination unit installed and a PH2.0 connector. Wiring for connection to ETU units or directly to the motor is also included but must be soldered by the user, which requires micro-soldering skills. If unsure, we recommend contacting one of our partner service centers.

Key features of the EPeS UV module for MAXX M4

MAXX M4 compatibility

Designed for hop-up chambers MAXX M4 (M4A, M4P, M4i and other compatible models).

Dual UV LEDs

2× UV LED for even and efficient illumination of the entire chamber.

Wide voltage range

Operating voltage 7–17 V for compatibility with standard AEG setups.

ETU/MOSFET power option

Can be connected to the motor or directly to ETU units Perun Hybrid and JeffTron Leviathan.

Internal solution without suppressor

Illumination takes place directly inside the chamber without the need for an external tracer suppressor.

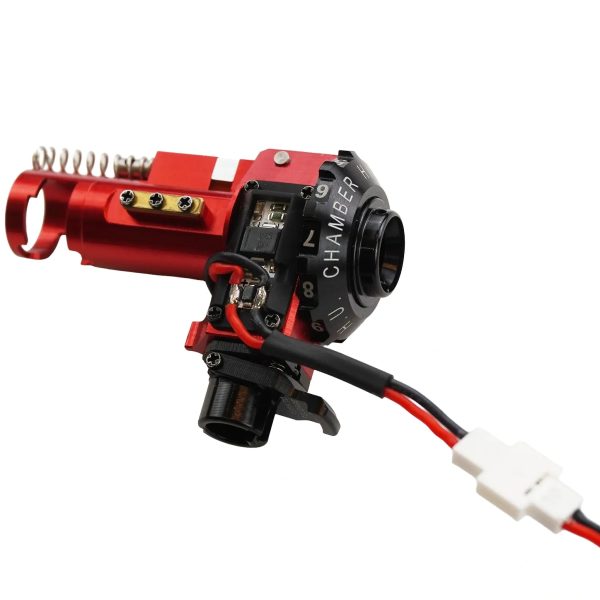

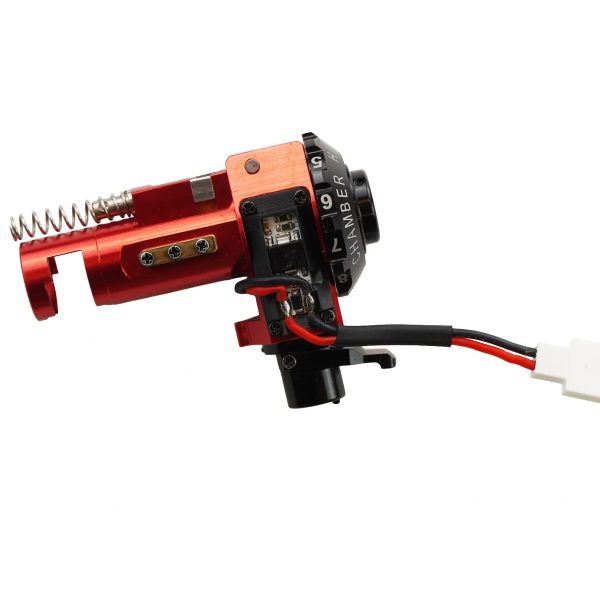

Example of UV module placement in MAXX M4A chamber

Effective BB illumination directly inside the hop-up chamber.

Technical specifications

• Compatibility: MAXX M4-Series hop-up chambers (M4A, M4i, M4P, M4G, M4Gi and other compatible models, not compatible with M4W for MTW systems)
• Lighting: 2× UV LED
• Operating voltage: 7–17 V
• Power supply: Parallel with motor or via ETU units (Perun, JeffTron)
• Connector: PH2.0
• Manufacturer: EPeS

Warning

• Installation requires advanced knowledge of micro-soldering and AEG operation.
• Frame screws are not included, use the original ones from your chamber.
• The frame replaces the transparent covers on both sides of the hop-up chamber.
• When powered from the motor, the module lights up only when firing; when connected to ETU units, behavior depends on unit settings.

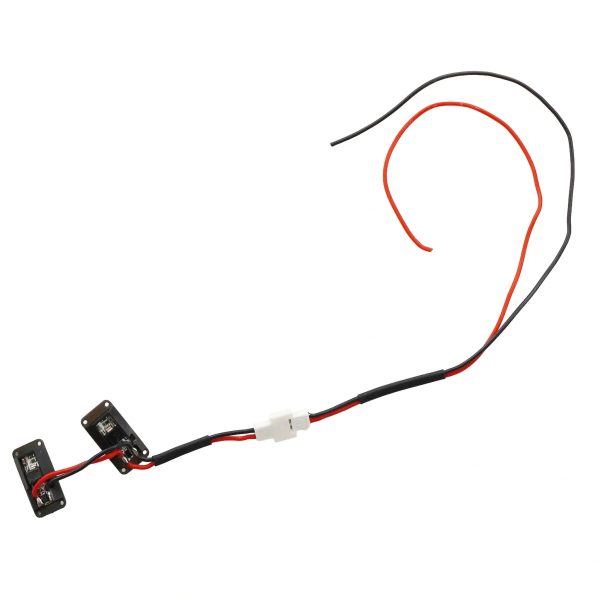

Package contents

• EPeS UV illumination unit with frame for MAXX M4-Series chambers
• Wiring with PH2.0 connector for connection to motor or ETU unit
