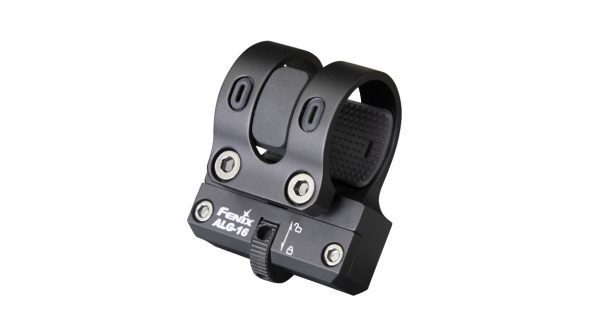

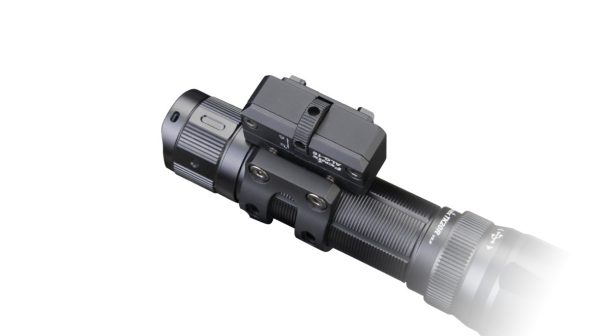

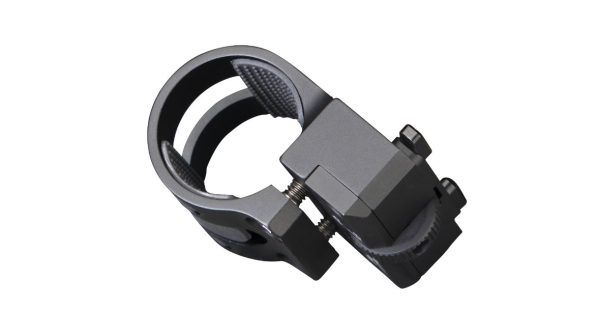

Fenix ​​ALG-16 metal mount for flashlights on M-LOK

Metal mounting for flashlight with body diameter 23,5 – 26,0 millimeters and head diameter up to 40 millimeters. The ALG-16 mount allows the flashlight to be attached to the M-LOK weapon interface.

The Fenix ​​ALG-16 metal mount allows the flashlight to be attached to the M-LOK (Magpul Lock) weapon interface. It is compatible with flashlights with a body diameter of 23.5 – 26.0 millimeters and a head diameter of up to 40 millimeters. Suitable for example for Fenix ​​TK11 TAC, TK16 V2.0, TK22 V2.0, TK22 UE, TK22 TAC, TK25 IR, TK25 R&B, TK25 Red, TK25 UV, TK26R, PD32, PD36 TAC, PD36R PRO, HT30R, UC35, FD41. The ALG-16 mount can be quickly attached to the M-LOK with a turn wheel. The PD35 V3.0 and PD35R flashlights can only be clamped by the head or end cap for assembly due to the smaller diameter of the body.

Parameters:

• Compatible with flashlights with a body diameter of 23.5 – 26.0 millimeters and a head with a diameter of up to 40 millimeters.
• Made of solid aluminum alloy with matte black anodization.
• Rubber inserts ensure a firm attachment of the lamp and prevent scratches. For lamps with a body diameter greater than 25.4 millimeters, the   rubber inserts must be removed.
• We recommend using a flashlight with a remote cable switch on your long gun.
• Assembly and Allen key are included in the package.

Use:

Place the flashlight in the mounting socket and secure the locking screws with the included Allen wrench. Place the assembly with the flashlight on the M-LOK and turn the wheel to fix the assembly. An Allen key can be used to lock the wheel.
