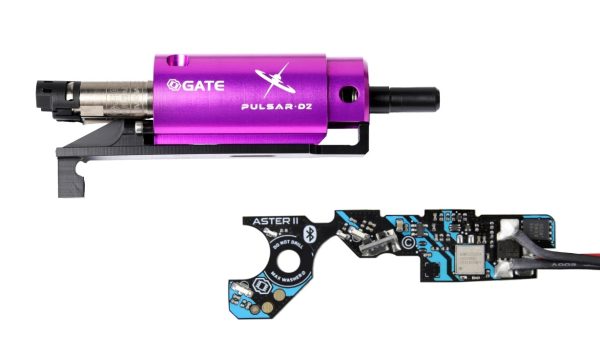

GATE HPA kit PULSAR D2 and ASTER II Bluetooth® EXPERT V3 – Front Wiring

Airsoft HPA kit PULSAR D2 and ASTER II Bluetooth® EXPERT V3 by GATE with front wiring (above the gearbox, to the handguard).

For AEG V3 gearbox (AK, AKM, AK-74, G36 and others).

Advanced AEG ETU unit combined with upgraded version of the PULSAR D HPA engine.

Pre-cocking, adjustable burst and trigger sensitivity, RoF 1–40 BB/s.

Bluetooth® connectivity to the GCS app.

Uses standard AEG nozzles.

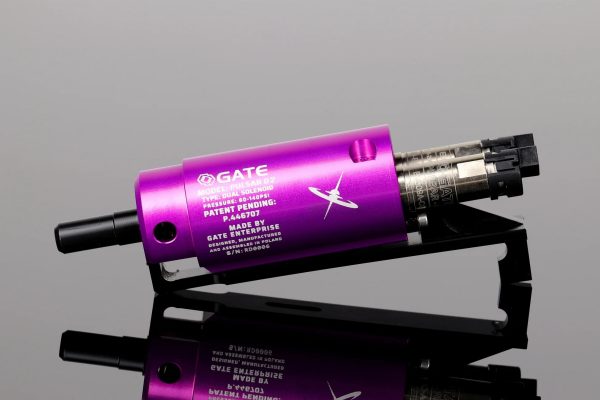

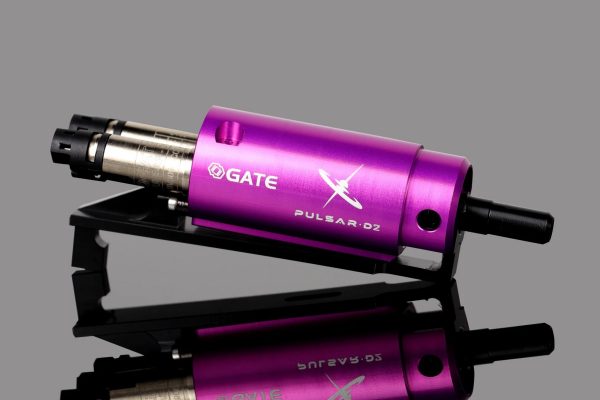

GATE PULSAR D2 and ASTER II Bluetooth® V3

Are you looking for the most precise, most stable, and technologically most advanced HPA system on the market? Do you want instant trigger response, zero drops in muzzle velocity, and a consistent BB flight path even at high rates of fire? Then the combination of PULSAR D2 and ASTER II Bluetooth® EXPERT is exactly what you are looking for. PULSAR D2 is an evolution of the original PULSAR D, improved based on several years of player feedback. Thanks to a completely redesigned valve and a larger compression chamber, it handles an extremely wide power range from approximately 0.5 J up to 3.6 J without the need to replace parts. Open-bolt and Closed-bolt modes, an innovative BB feeding system, and a central nozzle return spring ensure excellent consistency, stable muzzle velocity, and flawless operation. When paired with the processor unit ASTER II Bluetooth®, you gain outstanding control over the replica’s behavior—from trigger sensitivity to RoF, fire modes, and advanced diagnostics. ASTER II Bluetooth® is an advanced processor unit from GATE, designed for V3 gearboxes, not only in AEG but also in HPA builds. It features a highly precise trigger sensor for maximum control over the firing cycle. Thanks to Bluetooth 5.2, ASTER II can be connected directly to the GATE Control Station app (download here), where you can configure all unit functions, update firmware, monitor shot statistics, battery voltage, and more. It also supports connectivity with smartwatches and the GATE STATUS system, providing absolute overview of the replica, battery capacity, and remaining BBs in the magazine directly during gameplay.

Demonstration of the installation of the older PULSAR D and GATE TITAN II in a V2 gearbox (the installation principle of PULSAR D2 and ASTER in a V3 gearbox is almost identical)

Key features

• Dual solenoid HPA engine:
  Closed-bolt and open-bolt operation with maximum precision and stability.
• Extremely wide power range:
  From approximately 0.5 J up to 3.6 J without changing the valve (poppet valve).
• Central nozzle return spring:
  Symmetrical nozzle movement, higher reliability, and improved BB feeding.
• No mid-cap syndrome:
  High tolerance and zero nozzle play ensure stable muzzle velocity even when using strong magazine springs.
• Compatibility with AEG nozzles:
  Standard AEG nozzles can be used, including 5 CNC nozzles supplied in the package.
• ASTER II Bluetooth® EXPERT:
  Sensitive trigger sensor and advanced ETU/FCU functions.
• GCS app:
  Complete real-time unit configuration via mobile, PC, and smartwatch.

Demonstration of GATE TITAN II and PULSAR D (older version) setup in the GCS app on a phone and smartwatch (ASTER II uses the same app)

PULSAR D2 improvements over PULSAR D

• Redesigned poppet valve:
  New valve design ensures stable air delivery across an extremely wide power range without the need for part replacement.
• Larger compression chamber:
  Higher air volume provides more consistent FPS (muzzle velocity), better BB spin, and higher accuracy even with different hop-up rubbers.
• Wider power range:
  Stable operation from approximately 0.5 J up to 3.6 J without the need to change the poppet valve (PULSAR D required tuning).
• Central nozzle return spring:
  Replaces the original tappet spring solution, ensuring symmetrical nozzle movement, higher feeding reliability, and reduced wear.
• Quieter system operation:
  Optimized cycle and airflow reduce noise compared to the previous generation.
• Higher accuracy and stability:
  Improved BB rotation and elimination of typical HPA issues (unstable hop-up, FPS spread).
• Higher RoF without power drop:
  Stable FPS even at high rates of fire up to 40 RPS, with no difference between SEMI and AUTO.
• Better tolerance to imperfect alignment:
  D2 is less sensitive to receiver quality and installation than the original PULSAR D.
• Even better integration with ASTER II Bluetooth®:
  Advanced automatic cycle synchronization and faster, easier calibration via the GCS app.

Technical specifications – PULSAR D2

• Type: Dual solenoid HPA engine
• Mode: Closed-bolt / Open-bolt
• Operating pressure: 60–140 PSI
• Power: 0.5 J – 3.6 J (approx. 75 – 195 m/s depending on configuration)
• RoF: 1–40 RPS (even higher rates possible with stronger magazine springs)
• Air consumption: approx. 0.7 PSI / shot (90 PSI, 0.8 l tank)
• Voltage: 5–8.4 V
• Dimensions: 110 × 25.4 × 38.5 mm
• Weight: 95 g
• Recommended battery: Li-Pol / Li-Ion 7.4 V
• Battery connector: JST

Technical specifications – ASTER II Bluetooth®

• HPA power supply: 5–8.6 V DC
• Bluetooth: 5.2 Low Energy
• Current draw: 20 mA (Low Power Mode 130 µA)
• Dimensions: 73.5 mm × 24 mm × 12.5 mm
• Weight: approx. 26 g

Package contents

• GATE PULSAR D2 HPA engine
• ASTER II Bluetooth® EXPERT V3
• Wiring to the stock
• 5× CNC nozzles of different lengths
• Installation accessories

Warning

• Intended for experienced users or professional installation. Damage caused by incorrect installation is not covered by warranty.
• For system operation, you must additionally purchase a gearbox and a complete HPA setup (tank, regulator, hose, and micro HPA battery).
• Not compatible with accessories requiring power from the dual solenoid.
• Use of high-quality mid-cap magazines is recommended for flawless operation.
