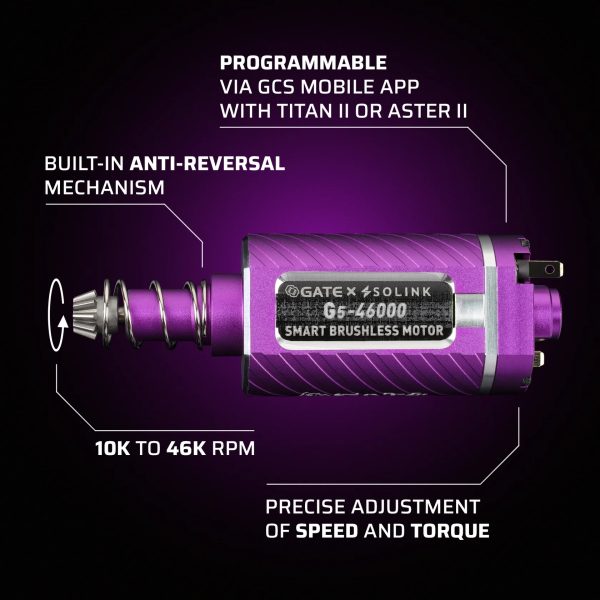

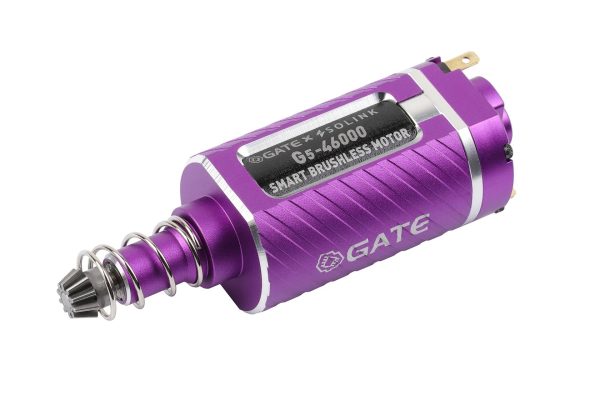

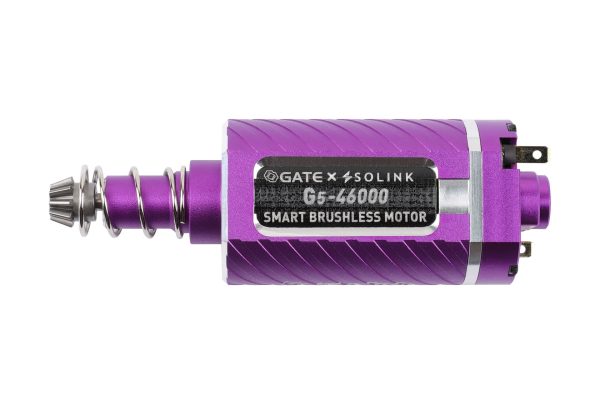

GATE / Solink G5 Smart Brushless Motor, 46 RPM – Long

G5 SMART Programmable Brushless Motor 46000 RPM by GATE / Solink in purple.

Long shaft for V2 gearboxes (M4 / MK18 / HK416, etc.).

Brushless motor with programmable settings via the GCS mobile app (Gate Control Station).

Compatible with GATE TITAN II and ASTER II Bluetooth® units.

RPM range from 10,000 to 46,000 RPM.

Technical Specifications

• Operating voltage: 6 – 16.8 V
• Dimensions: 88.5 x 29.5 x 25 mm
• Weight: 141 g
• No-load current draw: 3.2 A (at 45,800 RPM)
• Maximum efficiency: 75.9%
• Maximum power output: 519 W
• Torque: 2334 g/cm
• RPM range: 10,000 – 46,000 RPM

Programming Compatibility

• Smart programming functions supported by: TITAN II Bluetooth, ASTER II Bluetooth by GATE
• Standard use as a brushless motor (without RPM settings): ASTER SE for V2, ASTER SX for V2, TITAN V2 (1st gen), JeffTron Leviathan (enable Brushless mode), T238, and other V2 ETU units

Package Contents

• G5 SMART Programmable Brushless Motor
