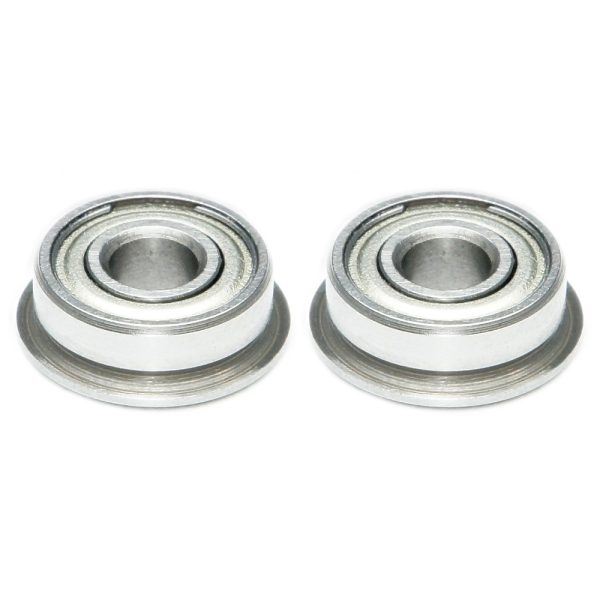

MAXX Flanged Steel Ball Bearing 3x8x3mm – 2PCS

Two pieces of flanged ball bearings that serve to reduce rotational friction and support radial loads.

Flanged Ball Bearings are to reduce rotational friction and support radial loads. Ideal for precision work with close tolerances suitable for building models and applications.
The flanged ball bearings have a flanged outer ring to facilitate location in housing axially and eliminate the need for housing shoulders. Made of heat-treated Chrome steel.

	Bore Diameter: d=3mm
	Outer Diameter: D=8mm
	Width: B=3mm
	Flange Diameter: Df=9.2mm
	Flange Width: Bf=0.6mm
	Inner Race: Di=4.35mm
	Outer Race: Do=6.65mm
	Radius: R=0.15mm
	Dynamic Load Rating: C=43kgf
	Static Load Rating: Co=19kgf
	Bearing Type: Flanged Deep Groove Ball Bearing
	Closure: Metal Shields
	Material: Chrome Steel (SAE52100)
