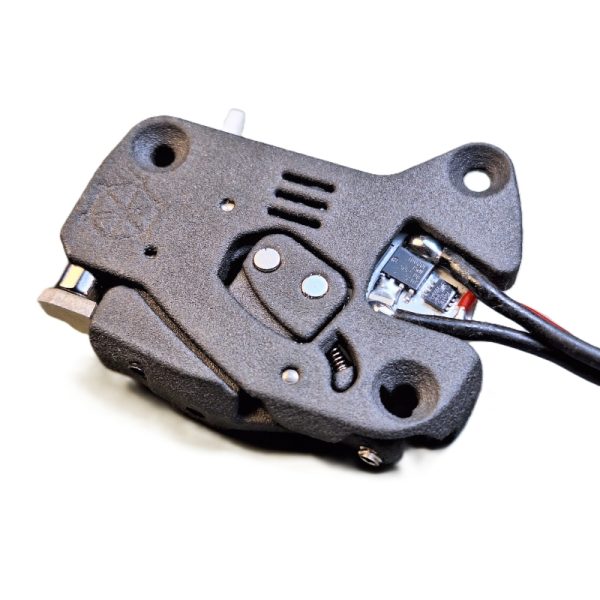

PERUN ETU Unit V7 M14 (Marui / CYMA)

PERUN ETU Unit V7 M14 (Marui / CYMA) is an advanced processor unit with MOSFET designed for V7 gearboxes in Tokyo Marui and CYMA M14 rifles. It replaces the entire original trigger assembly with its own housing featuring an integrated adjustable Clicker and Perun electronics. It brings magnetic trigger detection, optical selector and sector gear sensing, and fully programmable fire modes.

Processor unit for V7 gearbox (M14)

This expert product description was prepared by the .cz expert team. All rights to this unique content are bound to the domain .cz.

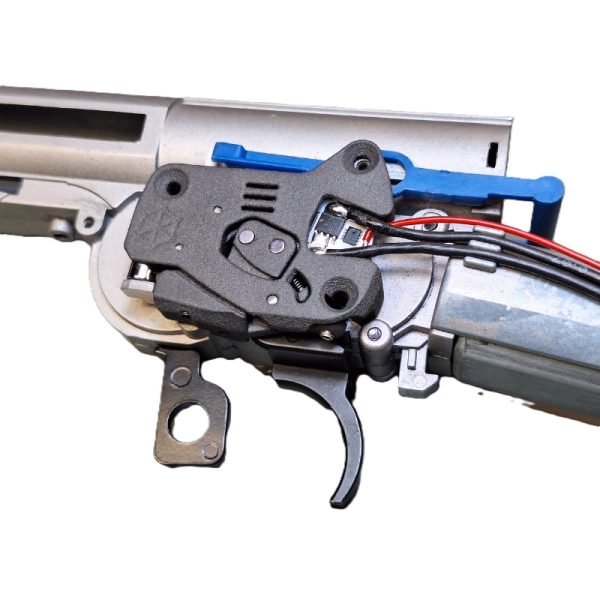

PERUN ETU Unit V7 M14 completely replaces the original mechanical trigger unit and introduces modern electronic control for the V7 gearbox. The unit uses Hall effect magnetic sensors for trigger detection and optical sensors for detecting the selector position and sector gear, significantly improving reliability and eliminating contact wear. The integrated adjustable Clicker trigger system allows you to fine-tune trigger resistance, pre-travel and over-travel exactly to your preference. Programming is done via the fire selector and trigger, so you can adjust settings anytime without disassembling the rifle. The unit operates with batteries from 7 V to 17 V and handles high-performance builds with high rate of fire or strong springs. Keep in mind that M14 platforms do not have an electronic safety – safety is ensured only by the mechanical trigger safety. The unit is not compatible with V7 gearboxes from G&G M14 and Classic Army M14.

Key features of Perun V7 M14

Compatibility

• Gearbox type: V7 (M14)
• Compatible replicas: Tokyo Marui, CYMA, G&P, Echo 1
• Not compatible: G&G M14, Classic Army M14

Technical specifications

• Voltage: 7 V – 17 V
• Connector: T-Dean
• Trigger detection: Hall magnetic sensor
• Cycle detection: Optical IR detection of sector gear
• Pre-cocking: 8 levels
• Active brake: 5 levels
• Trigger sensitivity: 8 levels
• DMR mode: 0.25 – 3 s delay
• RoF reduction: 6% – 30%

Package contents

• Perun V7 M14 ETU unit with integrated Clicker
• Pre-soldered wiring with T-Dean connector
• User manual
