EPeS Cylinder Head AEG Mk.II Uni V2/3 – Extra Long – EF – 90sh

CNC Aluminum Cylinder Head MK.II for V2/3 gearboxes, featuring an extra-long nozzle length for 32+ mm nozzles.

Impact Pad 90sh for springs M170+.

Extra Fit model ensures tighter contact with the nozzle.

Locking set screws to eliminate movement in the gearbox face.

Helps resolve feeding issues.

You can use nozzles up to 1 mm longer!

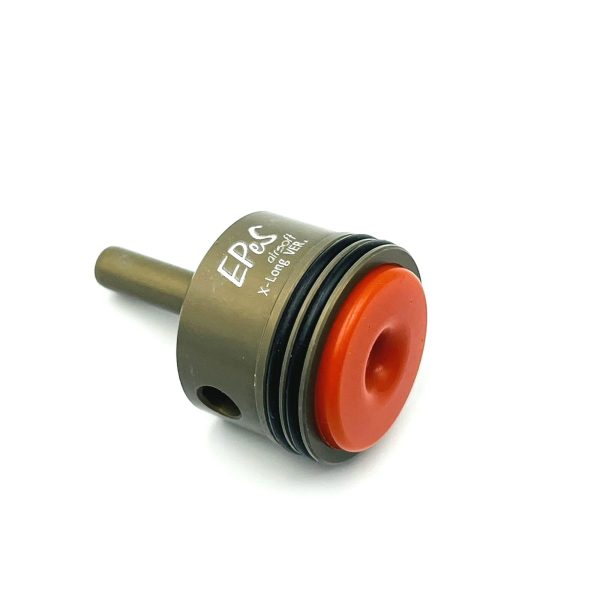

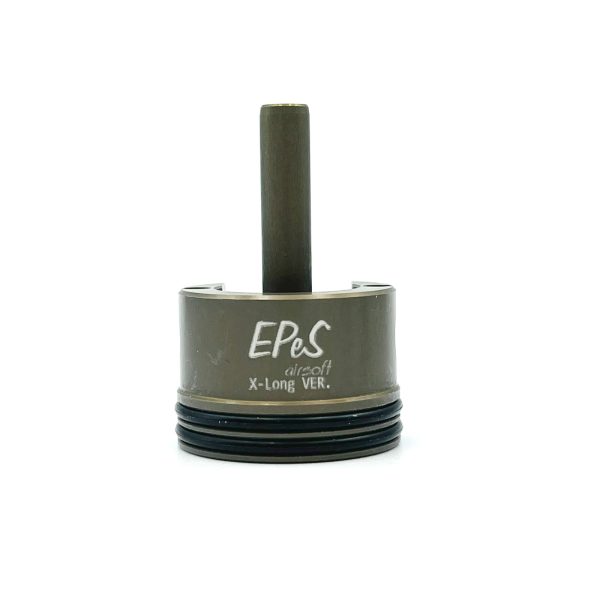

CNC Cylinder Head MK.II by EPeS

The CNC Cylinder Head MK.II by EPeS sets a new standard in quality and performance, offering a unique design solution.
The head is fixed with screws to prevent unwanted movement during firing. Its innovative design allows for a longer nozzle stroke, achieving maximum nozzle seal around the hop-up bucking.
The surface features a unique H+PTFE coating, ensuring smooth nozzle operation and exceptional durability. Made from aircraft-grade aluminum with H+PTFE coating, this cylinder head guarantees durability and extended service life.

Available Versions of the MK.II Cylinder Head

1. By nozzle diameter:

• Standard – nozzle diameter 5.35 mm
• Extra Fit (EF) – increased nozzle diameter 5.40 mm (compatible with EPeS nozzles)

2. By nozzle length:

• Short (for nozzles 17 – 20 mm, e.g., CZ EVO)
• Medium (for nozzles 20 – 24 mm, e.g., M4/16, AK, M249, MP5)
• Long (for nozzles 24 – 32 mm, e.g., SR-25, AUG)
• Extra Long (for nozzles 32+ mm, e.g., M60, SCAR-H, CZ BREN)

3. By impact padding:

• No padding (compatible with custom Sorbopads tailored to the gun’s power and gear alignment)
• 3mm Impact Pad 70sh (for springs up to M130 in AEGs, M120 in machine guns, M140 in DMRs)
• 3mm Impact Pad 80sh (for springs up to M160 in AEGs, M150 in machine guns, M170 in DMRs)
• 3mm Impact Pad 90sh (for springs M170+ in AEGs, M160+ in machine guns, M180+ in DMRs)

Impact pads (70, 80, 90sh) improve airflow and are made from durable polyurethane, ensuring maximum lifespan and shock absorption.

Main Features of the CNC Cylinder Head MK.II

• Extended nozzle stroke: Enables the use of nozzles up to 1 mm longer for better sealing and feeding reliability.
• Universal gearbox compatibility: Adjustable to fit V2/V3 gearboxes of various brands, ensuring optimal performance.
• New MK.II Version: Enhanced H+PTFE coating, extended nozzle length, and redesigned impact pads.

Package Contents

• 1× Cylinder Head with two sealing O-rings
• 2× Fixing screws M3×2
• 2× Fixing screws M3×3

Notice

We strongly recommend securing the screws with high-strength threadlocker!
