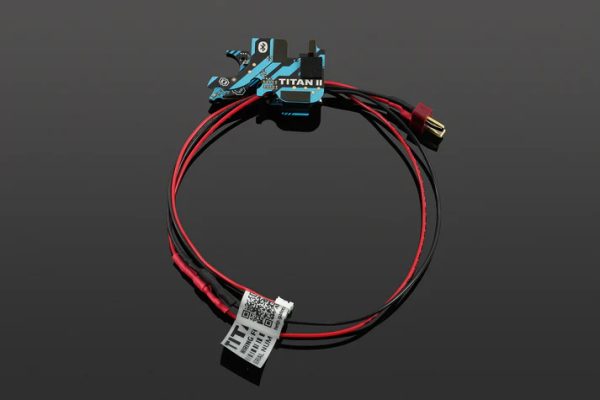

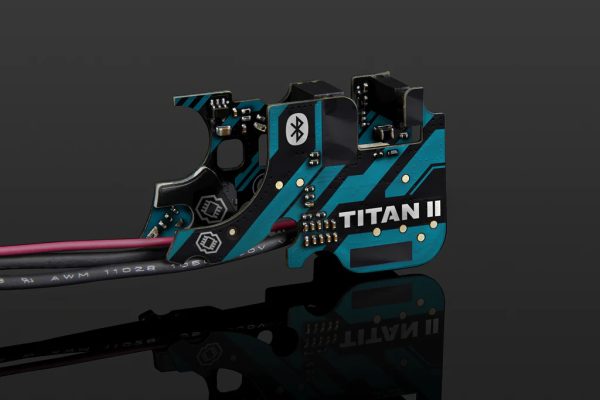

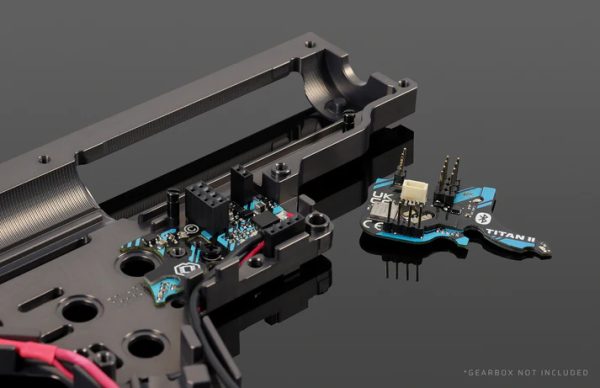

GATE TITAN II Bluetooth® EXPERT V2 ETU (AEG / HPA) – Rear Wiring

TITAN II Bluetooth® EXPERT V2 control unit by GATE with rear-wired configuration.

Compatible with AEG and HPA V2 gearboxes (M4, M16, HK416, MK18, and SR-25).

GATE’s flagship ETU with Bluetooth® 5.2 and revolutionary sensor technology.

Full control over your AEG by GCS app – iOS, Android, Windows, macOS, smart watch.

Hair-trigger with up to 50 levels per 1 mm of trigger travel.

TITAN II Bluetooth® EXPERT V2 control unit by GATE

TITAN II Bluetooth® is the most advanced control unit by GATE, designed for V2 gearboxes, both in AEG and HPA platforms. It features the most precise trigger sensor in the world along with a brand-new gear sensor that detects every tooth and the direction of rotation, enabling unprecedented control over the firing cycle. Thanks to Bluetooth 5.2, TITAN II connects directly to the GATE Control Station app (download here), allowing users to configure all settings, update firmware, track shot statistics, monitor battery voltage, and more. It also supports smartwatch integration and the GATE STATUS system for complete in-game monitoring of weapon status, battery level, and BB count.

Key features

• Bluetooth 5.2:
  Direct connection to the GCS app for iOS, Android, Windows, macOS, watchOS, and Wear OS.
• Optical trigger sensor:
  Up to 50 levels of sensitivity per 1 mm of trigger movement for ultra-fine adjustment.
• Gear sensor:
  First in the world to recognize direction and individual teeth – enabling precise cycle control.
• Multifunction port:
  Supports add-ons such as mag sensor, bolt catch, hop-up tracer, electric magazine.
• Advanced features:
  Pre-cocking, active brake, magazine simulation, ROF control, DMR delay, sniper mode, and more.
• Brushless motor compatibility:
  Fully ready for modern brushless motors.
• Firmware updates:
  Easy updates and feature expansions via the GCS app.
• GATE ecosystem:
  Full integration with accessories like GATE STATUS and other smart devices.

Technical specifications (AEG version)

• Gearbox compatibility: V2 (AEG and HPA platforms)
• Wiring layout: Rear-wired
• Connector: T-Dean
• Input voltage: 3.75–17 V DC
• Max current: 30 A
• Active mode consumption: 27 mA
• Sleep mode consumption: 100 µA
• Connectivity: Bluetooth® 5.2 Low Energy
• Dimensions: 47.2 × 28.9 × 14.5 mm
• Weight: 28.2 g
• Operating temperature: -15 °C to +50 °C
• Relative humidity: ≤ 80 %

Package contents

• TITAN II Bluetooth® EXPERT V2 control unit
• Rear-wired cable
• User manual
• GATE stickers

Warning

• For full functionality, we recommend connecting the unit to the GATE Control Station app.
• TITAN II firmware requires a compatible version of the GCS app – always check the latest version on the manufacturer’s website.
• A second valve cable is required for 2-valve HPA systems (sold separately – can be ordered).
