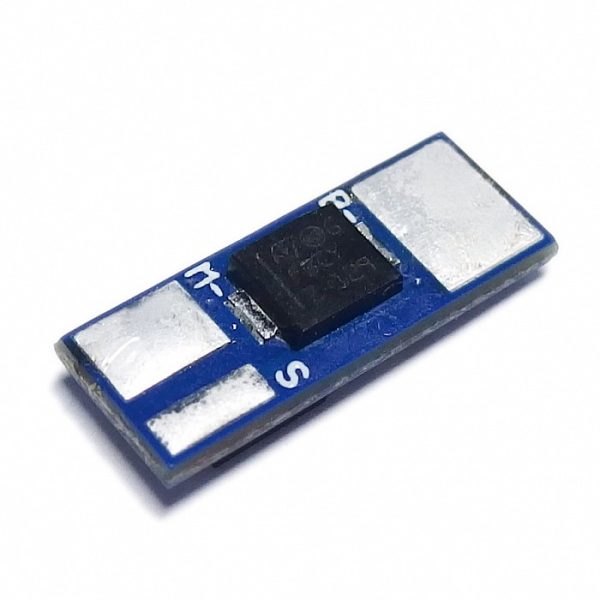

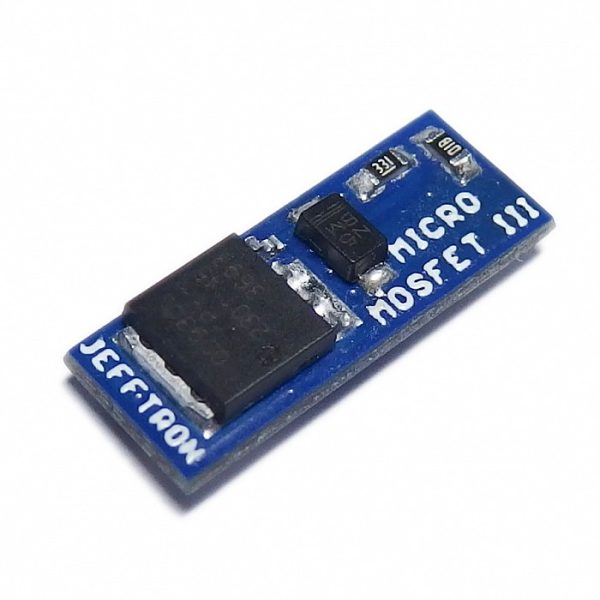

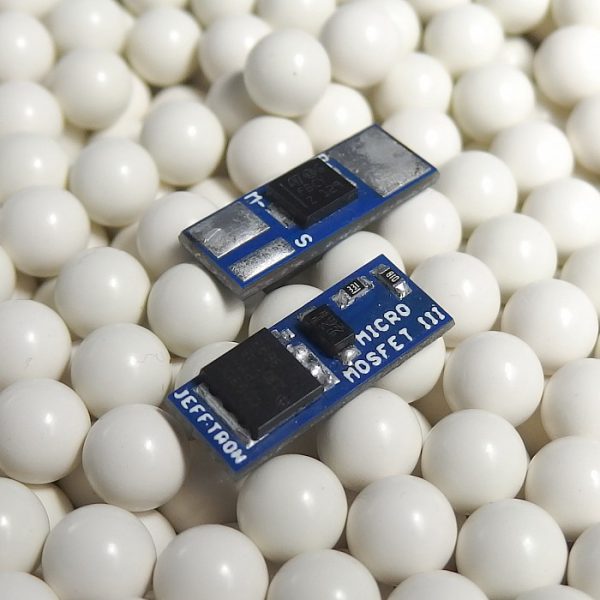

JeffTron Micro MOSFET III

Micro MOSFET III by JeffTron – version without wiring.

Mounted outside the gearbox.

Easy to install thanks to compact dimensions.

For AEG replicas without active braking.

Improves rate of fire and extends battery life.

Suitable for springs up to M170.

Ideal for experienced technicians – no pre-installed wires.

Technical Specifications

• Compatibility: AEG gearboxes
• Max current: 90 A peak, 35 A continuous (30 s burst)
• Spring rating: Up to M170
• Voltage: 8.4–17V (Ni-xx, LiPo, LiFe)
• Module dimensions: 16 × 6.4 × 3.5 mm
• Mounting location: Outside the gearbox
• Wiring: It is not
• Connector: It is not

Package Contents

• Micro MOSFET III without wiring
• Heat shrink tubing
• Installation guide

Warning

Installation must be performed by an experienced technician with skills in safely disassembling AEG gearboxes and properly soldering wires. Never use a transformer soldering gun! For easier installation, we recommend the version with wiring and accessories.
