JeffTron MOSFET V2

MOSFET V2 by JeffTron – version without wiring.

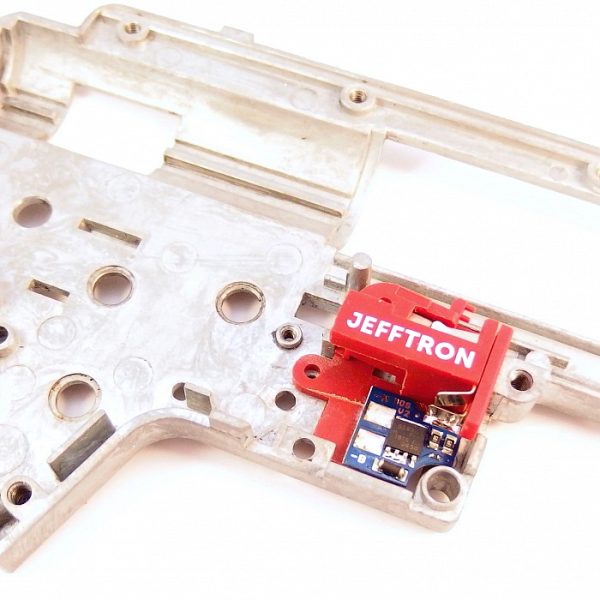

Installed directly in the V2 gearbox to save space for the battery.

Includes trigger contacts.

For AEG replicas without active braking.

Increases rate of fire and battery life.

Suitable for springs up to M170.

Ideal for experienced technicians – no pre-installed wires.

Technical Specifications

• Compatibility: AEG V2 gearbox (TM standard)
• Max Current: 90 A peak, 35 A continuous (30s burst)
• Spring Rating: Up to M170
• Voltage: 8.4–17 V (Ni-xx, LiPo, LiFe)
• Location: Inside gearbox
• Wiring: No
• Connector: No

Package Contents

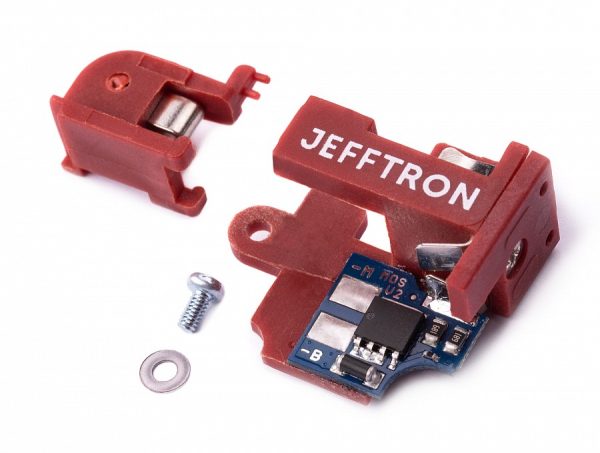

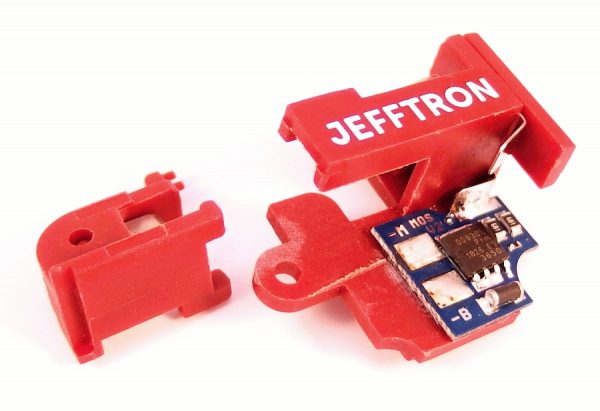

• MOSFET V2 on trigger contacts
• Trigger trolley
• Screw and washer (for gearbox mounting)
• Installation manual

Warning

Installation must be done by an experienced technician capable of safely disassembling an AEG gearbox and soldering wires correctly. Never use a transformer soldering iron! For easier installation, we recommend the version with wiring and accessories.
